| LEVELER ELBOW | |||||
|---|---|---|---|---|---|
 | Replaces an assortment of iron pipe fittings. Zinc alloy die cast threaded fittings. Swedge-locked in galvanized steel tubing for greater strength. Will not seize or gall. No assembly required – easily installed with all standard sprinkler head levelers. Available for 1” or ¾” system outlets. | ||||
| SIZE | TYPE | IACOPARTNO | WEIGHT | BOXQTY | |
 | 3/4M X 3/4F | 90ø - GALVANIZED | MEL-212-090 | 0.96 | 50 |
| 1M X 3/4F | 90ø - GALVANIZED | MEL-112-090 | 1.1 | 50 | |
| FLAPPER DRAIN VALVE | ||||
|---|---|---|---|---|
 | Our founder, Bill Stout, invented the Flapper Drain Valve in 1950. Dont be fooled by cheap knockoffs. Demand the original. The OEMs continue to support the original MADE IN AMERICA Flapper Drain Valve. Recently a dealer called us with a problem with structural integrity. When they sent us some samples of the problem parts we immediately knew they were a cheap knockoff from China or India. We still warrantied the parts just asking them to tell their supplier they only want the original MADE IN AMERICA IACO Flapper Drain Valve. Field proven for over 60 years. Use Patent Picture from Timeline. | |||
| TYPE | IACOPARTNO | WEIGHT | BOXQTY | |
| COMPLETE | ||||
 | Standard | MDV-COM-000 | 0.390 | 0 |
| COMPLETE | ||||
 | 1" | MDV-COM-100 | 0.350 | 0 |
| RUBBER FLAPPER | ||||
 | Original Style Natural Rubber | MDV-FL0-000 | 0.090 | 500 |
| RUBBER FLAPPER | ||||
 | Original Style EPDM | MDV-FLE-PDM | 0.090 | 500 |
| RUBBER FLAPPER | ||||
 | New Design EPDM | MDV-FL0-NEW | 0.090 | |
| INSERT | ||||
 | Original design | MDV-IN0-000 | 0.093 | 400 |
| INSERT | ||||
 | Slow Drain / Low Erosion | MDV-IN0-LOW | 0.090 | 400 |
| SPLASH NUT | ||||
 | MDV-SP0-000 | 0.131 | 500 | |
| SPLASH NUT | ||||
 | 1" | MDV-SP1-000 | 0.100 | 500 |
| HALF NUT | ||||
 | MDV-HN0-000 | 0.074 | 500 | |
| SEAL | ||||
 | 1" | MDV-SE0-000 | 0.052 | 500 |
| VALVE STEM & DISCS | |||||
|---|---|---|---|---|---|
| Stem: Universal – For 3” x 4” Univerasal Valves, Fits most Pierce, Alumax, Irreco, Moore-Rane, Wade – Universal, Ames, Lake, Crown, Western and Travis-Rainway. Disc: Fits most Pierce, Alumax, Irreco, Moore-Rane, Wade – Universal, Ames, Lake, Crown, Western and Travis-Rainway Valves with 5/8” stem hole. |
|||||
| SIZE | TYPE | IACOPARTNO | WEIGHT | BOXQTY | |
| Plated Steel Valve Stem | |||||
 | 6 3/4" x 5/8" | Acme | MVS-000-000 | 0.57 | 50 |
| Domed Valve Disc | |||||
 | 4" | MVD-000-400 | 0.39 | 50 | |
| 3" | MVD-000-300 | 0.26 | 50 | ||

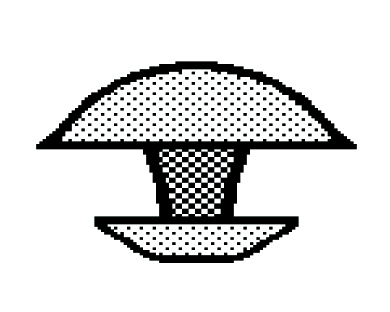

| DRAINS | ||||
|---|---|---|---|---|
| Mushroom, Crown and FMC, all quality made in the USA. | ||||
| SIZE | TYPE | IACOPARTNO | WEIGHT | |
 | Rubber Only | MUSHROOM | MDR-MUR-000 | 0.035 |
| Clip Only | MUSHROOM | MDR-MUC-000 | 0.025 | |
| Rubber/Clip Combo | MUSHROOM | MDR-COM-000 | 0.06 | |

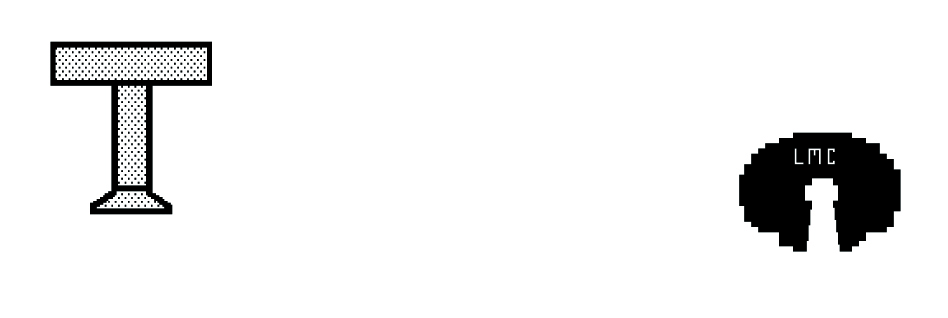

 | Crown | CONCAVE | MDR-4DR-C00 | 0.035 |
 | FMC | MDR-4DR-FMC | 0.1 | |
| HOSES | ||||
|---|---|---|---|---|
| Black Rubber in 3” and 4”. Angus dragline hose in 3” and 4”. PVC in 2”, 3” and 4”. | ||||
| SIZE | TYPE | IACOPARTNO | WEIGHT | |
 | 3" ID - 2 Ply 150 PSI | Rubber (Black) | MHS-RUB-300 | 0.9 |
| 4" ID - 2 Ply 150 PSI | Rubber (Black) | MHS-RUB-400 | 0.98 | |
| 3" ID - 2 Ply 200 PSI | Angus | MHS-ANG-300 | 0.7 | |
| 4" ID - 2 Ply 200 PSI | Angus | MHS-ANG-400 | 0.8 | |
| 2" ID - 3 Ply Heavy Duty 200 PSI | PVC | MHS-PVC-200 | 0.59 | |
| 3" ID - 3 Ply Heavy Duty 200 PSI | PVC | MHS-PVC-300 | 0.77 | |
| 4" ID - 3 Ply Heavy Duty 200 PSI | PVC | MHS-PVC-400 | 0.95 | |
