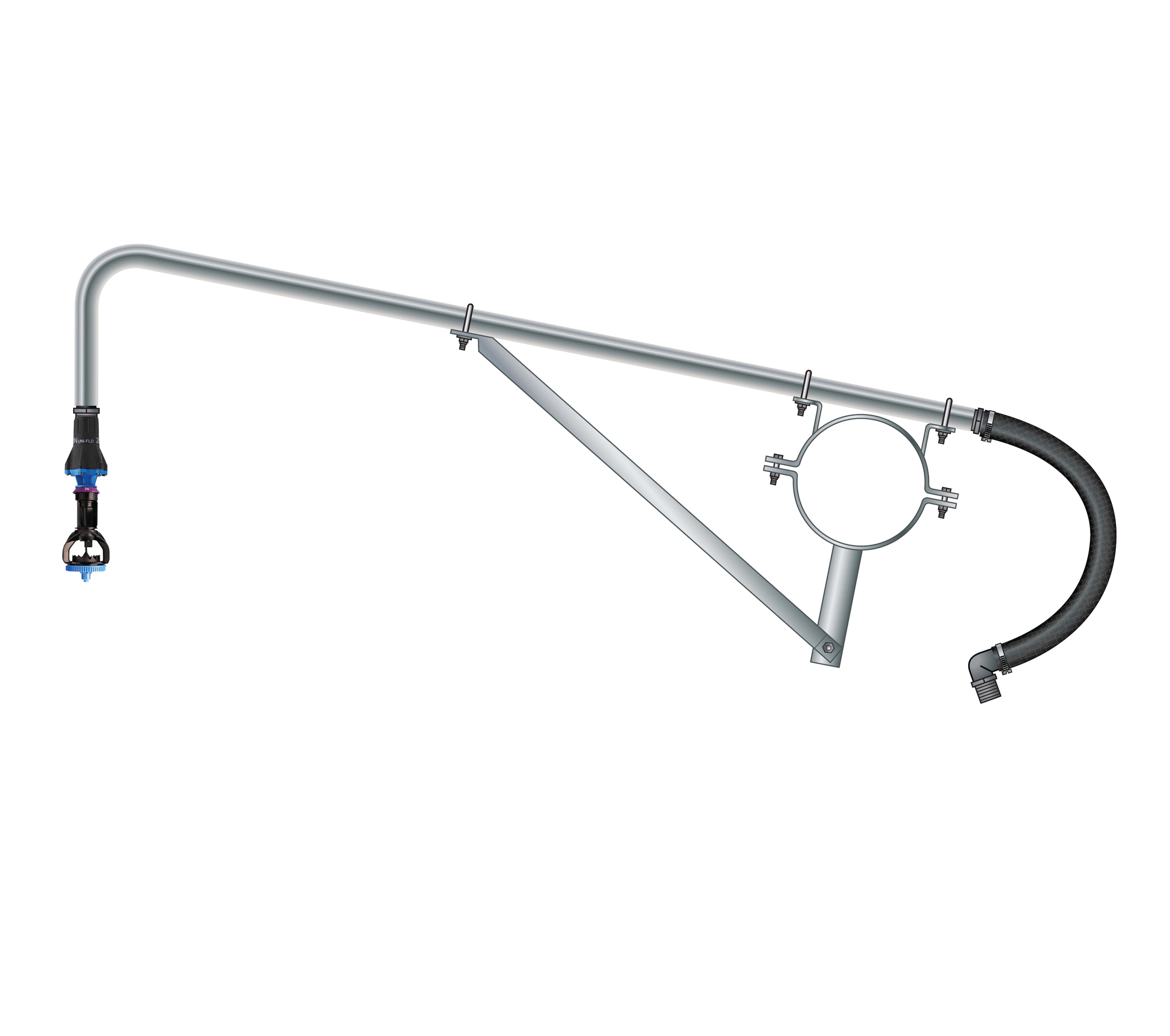

Dry Wheel Package! Part-Circle Specific Boom! Why use more Boom than necessary. With Part-Circle Rotators spraying 180° behind the tower a 10’ offset is all you need. 11.5’ of 17 gauge galvanized tube means a full 10’ of offset.
SIZE
TYPE
IACOPARTNO
WEIGHT
10'
3"
MST-HBR-A11
19
10'
4"
MST-HBR-A13
19
10'
4 1/2"
MST-HBR-A14
19
10'
5"
MST-HBR-A12
19
10'
5 9/16"
MST-HBR-A15
19
10'
6"
MST-HBR-A16
19
10'
6 5/8"
MST-HBR-A17
19
10'
8"
MST-HBR-A18
19
10'
8 5/8"
MST-HBR-A19
19
10'
10"
MST-HBR-A10
19
Corn Boom
Are you using Nelson’s R3000 Rotator with the Up-Top White plate for corn and you want Dry Wheel Tracks?
We have a Boomback for that! The Corn Boom by IACO! Utilizing the same technology as the industry leading Hose Boom, the Corn Boom uses an upward angle to keep the sprinkler above the canopy.
SIZE
TYPE
IACOPARTNO
WEIGHT
10'
3"
MST-HBR-A11
19
10'
4"
MST-HBR-A13
19
10'
4 1/2"
MST-HBR-A14
19
10'
5"
MST-HBR-A12
19
10'
5 9/16"
MST-HBR-A15
19
10'
6"
MST-HBR-A16
19
10'
6 5/8"
MST-HBR-A17
19
10'
8"
MST-HBR-A18
19
10'
8 5/8"
MST-HBR-A19
19
10'
10"
MST-HBR-A10
19

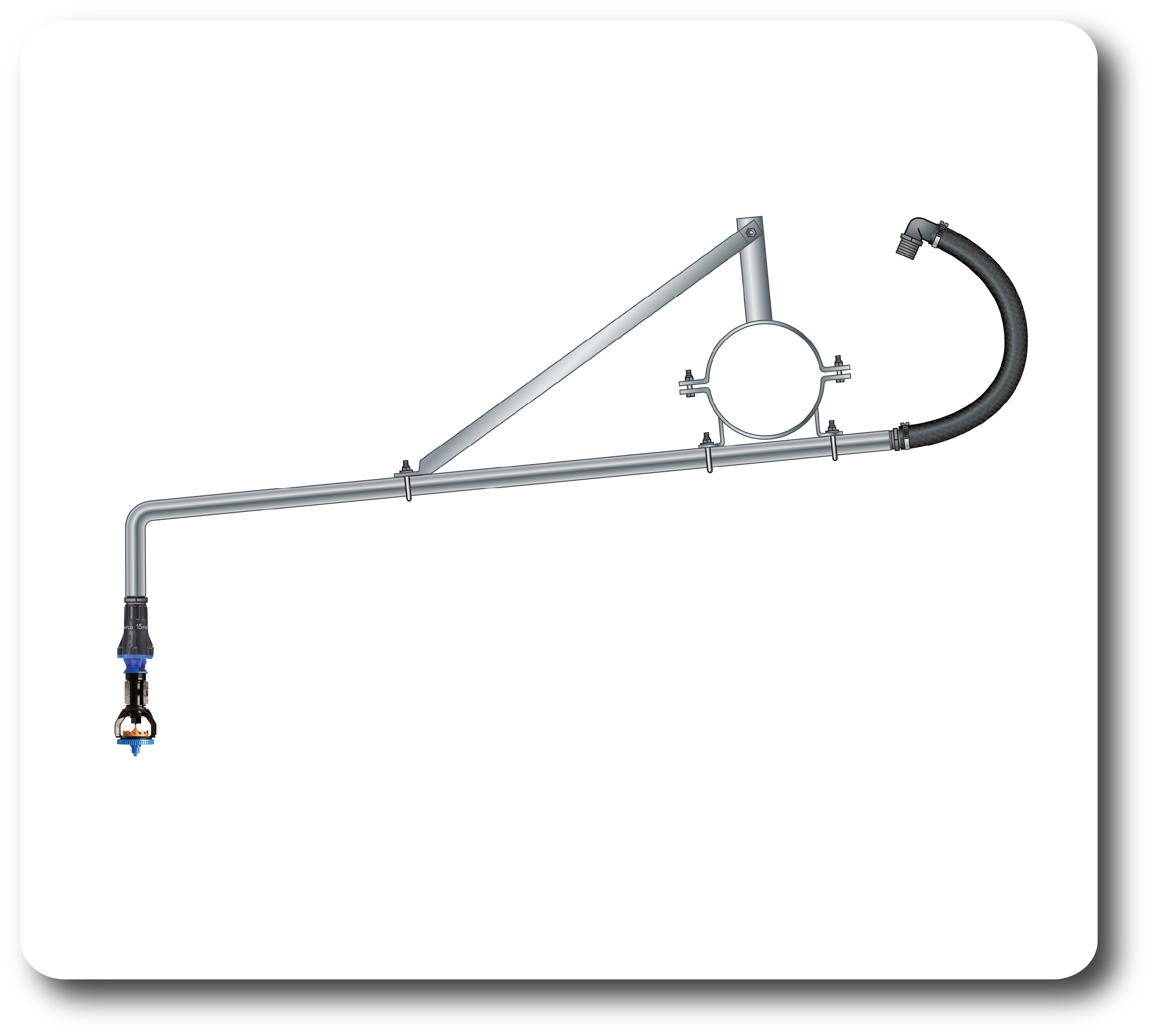

HOSE BOOMS 15'
One Boom Does It All! Whether you are using a tried and true sprinkler, even ones requiring a length of hose, or the latest technology in Part-Circle sprinklers, the Hose Boom takes it in stride. Add a length of hose or pull it up close to absorb side force, the Hose Boom has built in dampening.
SIZE
TYPE
IACOPARTNO
WEIGHT
15'
3"
MST-HBR-C11
24
15'
4"
MST-HBR-C13
24
15'
4 1/2"
MST-HBR-C14
24
15'
5"
MST-HBR-C12
24
15'
5 9/16"
MST-HBR-C15
24
15'
6"
MST-HBR-C16
24
15'
6 5/8"
MST-HBR-C17
24
15'
8"
MST-HBR-C18
24
15'
8 5/8"
MST-HBR-C19
24
15'
10"
MST-HBR-C10
24
HOSE BOOMS 30'
RIGID HOSE DROPS
Utilizing the same technology as the Hose boom, the Rigid Hose Drop allows you to use a Nelson Part-Circle Rotator on a Poly-Lined machine. You have the option of putting the drop any place you desire. Simply use a longer or shorter supply hose. The unique drop angle and mounting bracket allows for a level sprinkler anywhere on the span.
SIZE
TYPE
IACOPARTNO
WEIGHT
RIGID HOSE DROPS 84"
84"
3"
MST-RH1-084
10
84"
4"
MST-RH3-084
10
84"
4 1/2"
MST-RH4-084
10
84"
5"
MST-RH2-084
10
84"
5 8/16"
MST-RH5-084
10
84"
6"
MST-RH6-084
10
84"
6 5/8"
MST-RH7-084
10
84"
8"
MST-RH8-084
10
84"
8 5/8"
MST-RH9-084
10
84"
10"
MST-RH0-084
10
RIGID HOSE DROP 120"
120"
3"
MST-RH1-120
13.1
120"
4"
MST-RH3-120
13.1
120"
4 1/2"
MST-RH4-120
13.1
120"
5"
MST-RH2-120
13.1
120"
5 8/16"
MST-RH5-120
13.1
120"
6"
MST-RH6-120
13.1
120"
6 5/8"
MST-RH7-120
13.1
120"
8"
MST-RH8-120
13.1
120"
8 5/8"
MST-RH9-120
13.1
120"
10"
MST-RH0-120
13.1
SLING FINGER BOOMS
The Sling Finger is a stand-alone Boom that allows for the attachment of a Hose Sling at the towers replicating the spread of the truss rod at mid-span. The length of the Boom is 75 from the center of the pipe with a 48 brace for stability.
SIZE
TYPE
IACOPARTNO
WEIGHT
W/BRACE 4'
3"
MST-SLI-A11
9.5
W/BRACE 4'
4"
MST-SLI-A13
9.5
W/BRACE 4'
4 1/2"
MST-SLI-A14
9.5
W/BRACE 4'
5"
MST-SLI-A12
9.5
W/BRACE 4'
5 8/16"
MST-SLI-A15
9.5
W/BRACE 4'
6"
MST-SLI-A16
9.5
W/BRACE 4'
6 5/8"
MST-SLI-A17
9.5
W/BRACE 4'
8"
MST-SLI-A18
9.5
W/BRACE 4'
8 5/8"
MST-SLI-A19
9.5
W/BRACE 4'
10"
MST-SLI-A10
9.5
IDAHO BOOMS W/BRACE
Constructed of 1” O.D. x .049 wall (18 gauge) G-90 galvanized ASDTM-513 ERW steel tubing. Available in 10’, 12’ of 15’. Over 25 years of field proven performance. Improved bracing is 1” x 79” 18 gauge galvanized steel.
SIZE
TYPE
IACOPARTNO
WEIGHT
IDAHO BOOMS 10'
W/BRACE 10'
OPTION A-1, 3"
MST-IOB-A11
12.9
W/BRACE 10'
OPTION A-1, 4"
MST-IOB-A13
12.9
W/BRACE 10'
OPTION A-1, 4 1/2"
MST-IOB-A14
12.9
W/BRACE 10'
OPTION A-1, 5"
MST-IOB-A12
12.9
W/BRACE 10'
OPTION A-1, 5 9/16"
MST-IOB-A15
12.9
W/BRACE 10'
OPTION A-1, 6"
MST-IOB-A16
12.9
W/BRACE 10'
OPTION A-1, 6 5/8"
MST-IOB-A17
12.9
W/BRACE 10'
OPTION A-1, 8"
MST-IOB-A18
12.9
W/BRACE 10'
OPTION A-1, 8 5/8"
MST-IOB-A19
12.9
W/BRACE 10'
OPTION A-1, 10"
MST-IOB-A10
12.9
IDAHO BOOMS 12'
W/BRACE 12'
OPTION B-1, 3"
MST-IOB-B11
13.8
W/BRACE 12'
OPTION B-1, 4"
MST-IOB-B13
13.8
W/BRACE 12'
OPTION B-1, 4 1/2"
MST-IOB-B14
13.8
W/BRACE 12'
OPTION B-1, 5"
MST-IOB-B12
13.8
W/BRACE 12'
OPTION B-1, 5 9/16"
MST-IOB-B15
13.8
W/BRACE 12'
OPTION B-1, 6"
MST-IOB-B16
13.8
W/BRACE 12'
OPTION B-1, 6 5/8"
MST-IOB-B17
13.8
W/BRACE 12'
OPTION B-1, 8"
MST-IOB-B18
13.8
W/BRACE 12'
OPTION B-1, 8 5/8"
MST-IOB-B19
13.8
W/BRACE 12'
OPTION B-1, 10"
MST-IOB-B10
13.8
IDAHO BOOMS 15'
W/BRACE 15'
OPTION C-1, 3"
MST-IOB-C11
15.9
W/BRACE 15'
OPTION C-1, 4"
MST-IOB-C13
15.9
W/BRACE 15'
OPTION C-1, 4 1/2"
MST-IOB-C14
15.9
W/BRACE 15'
OPTION C-1, 5"
MST-IOB-C12
15.9
W/BRACE 15'
OPTION C-1, 5 9/16"
MST-IOB-C15
15.9
W/BRACE 15'
OPTION C-1, 6"
MST-IOB-C16
15.9
W/BRACE 15'
OPTION C-1, 6 5/8"
MST-IOB-C17
15.9
W/BRACE 15'
OPTION C-1, 8"
MST-IOB-C18
15.9
W/BRACE 15'
OPTION C-1, 8 5/8"
MST-IOB-C19
15.9
W/BRACE 15'
OPTION C-1, 10"
MST-IOB-C10
15.9

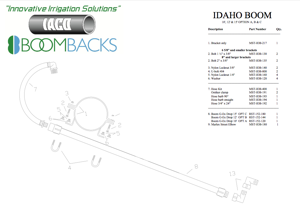

IDAHO BOOMS
Constructed of 1 O.D. x .049 wall (18 gauge) G-90 galvanized ASDTM-513 ERW steel tubing. Available in 10, 12 of 15. Over 25 years of field proven performance.
SIZE
TYPE
IACOPARTNO
WEIGHT
IDAHO BOOMS 10'
10'
OPTION A-1, 3"
MST-IOO-A11
9.3
10'
OPTION A-1, 4"
MST-IOO-A13
9.3
10'
OPTION A-1, 4 1/2"
MST-IOO-A14
9.3
10'
OPTION A-1, 5"
MST-IOO-A12
9.3
10'
OPTION A-1, 5 9/16"
MST-IOO-A15
9.3
10'
OPTION A-1, 6"
MST-IOO-A16
9.3
10'
OPTION A-1, 6 5/8"
MST-IOO-A17
9.3
10'
OPTION A-1, 8"
MST-IOO-A18
9.3
10'
OPTION A-1, 8 5/8"
MST-IOO-A19
9.3
10'
OPTION A-1, 10"
MST-IOO-A10
9.3
IDAHO BOOMS 12'
12'
OPTION B-1, 3"
MST-IOO-B11
10.2
12'
OPTION B-1, 4"
MST-IOO-B13
10.2
12'
OPTION B-1, 4 1/2"
MST-IOO-B14
10.2
12'
OPTION B-1, 5"
MST-IOO-B12
10.2
12'
OPTION B-1, 5 9/16"
MST-IOO-B15
10.2
12'
OPTION B-1, 6"
MST-IOO-B16
10.2
12'
OPTION B-1, 6 5/8"
MST-IOO-B17
10.2
12'
OPTION B-1, 8"
MST-IOO-B18
10.2
12'
OPTION B-1, 8 5/8"
MST-IOO-B19
10.2
12'
OPTION B-1, 10"
MST-IOO-B10
10.2
IDAHO BOOMS 15'
15'
OPTION C-1, 3"
MST-IOO-C11
11.6
15'
OPTION C-1, 4"
MST-IOO-C13
11.6
15'
OPTION C-1, 4 1/2"
MST-IOO-C14
11.6
15'
OPTION C-1, 5"
MST-IOO-C12
11.6
15'
OPTION C-1, 5 9/16"
MST-IOO-C15
11.6
15'
OPTION C-1, 6"
MST-IOO-C16
11.6
15'
OPTION C-1, 6 5/8"
MST-IOO-C17
11.6
15'
OPTION C-1, 8"
MST-IOO-C18
11.6
15'
OPTION C-1, 8 5/8"
MST-IOO-C19
11.6
15'
OPTION C-1, 10"
MST-IOO-C10
11.6
ALUMI BOOMS W/BRACE
Constructed of 1” O.D. x .058 wall drawn type II aluminum 6063-T832. Available in 10’, 12’ of 15’. Over 25 years of field proven performance. Improved bracing is 1” x 79” 18 gauge galvanized steel.
SIZE
TYPE
IACOPARTNO
WEIGHT
ALUMI BOOMS 10'
W/BRACE 10'
OPTION A-1, 3"
MAL-IOB-A11
10
W/BRACE 10'
OPTION A-1, 4"
MAL-IOB-A13
10
W/BRACE 10'
OPTION A-1, 4 1/2"
MAL-IOB-A14
10
W/BRACE 10'
OPTION A-1, 5"
MAL-IOB-A12
10
W/BRACE 10'
OPTION A-1, 5 9/16"
MAL-IOB-A15
10
W/BRACE 10'
OPTION A-1, 6"
MAL-IOB-A16
10
W/BRACE 10'
OPTION A-1, 6 5/8"
MAL-IOB-A17
10
W/BRACE 10'
OPTION A-1, 8"
MAL-IOB-A18
10
W/BRACE 10'
OPTION A-1, 8 5/8"
MAL-IOB-A19
10
W/BRACE 10'
OPTION A-1, 10"
MAL-IOB-A10
10
ALUMI BOOMS 12'
W/BRACE 12'
OPTION B-1, 3"
MAL-IOB-B11
10.5
W/BRACE 12'
OPTION B-1, 4"
MAL-IOB-B13
10.5
W/BRACE 12'
OPTION B-1, 4 1/2"
MAL-IOB-B14
10.5
W/BRACE 12'
OPTION B-1, 5"
MAL-IOB-B12
10.5
W/BRACE 12'
OPTION B-1, 5 9/16"
MAL-IOB-B15
10.5
W/BRACE 12'
OPTION B-1, 6"
MAL-IOB-B16
10.5
W/BRACE 12'
OPTION B-1, 6 5/8"
MAL-IOB-B17
10.5
W/BRACE 12'
OPTION B-1, 8"
MAL-IOB-B18
10.5
W/BRACE 12'
OPTION B-1, 8 5/8"
MAL-IOB-B19
10.5
W/BRACE 12'
OPTION B-1, 10"
MAL-IOB-B10
10.5
ALUMI BOOMS 15'
W/BRACE 15'
OPTION C-1, 3"
MAL-IOB-C11
11.3
W/BRACE 15'
OPTION C-1, 4"
MAL-IOB-C13
11.3
W/BRACE 15'
OPTION C-1, 4 1/2"
MAL-IOB-C14
11.3
W/BRACE 15'
OPTION C-1, 5"
MAL-IOB-C12
11.3
W/BRACE 15'
OPTION C-1, 5 9/16"
MAL-IOB-C15
11.3
W/BRACE 15'
OPTION C-1, 6"
MAL-IOB-C16
11.3
W/BRACE 15'
OPTION C-1, 6 5/8"
MAL-IOB-C17
11.3
W/BRACE 15'
OPTION C-1, 8"
MAL-IOB-C18
11.3
W/BRACE 15'
OPTION C-1, 8 5/8"
MAL-IOB-C19
11.3
W/BRACE 15'
OPTION C-1, 10"
MAL-IOB-C10
11.3
ALUMI BOOMS
Constructed of 1 O.D. x .058 wall drawn type II aluminum 6063-T832. Available in 10, 12 of 15. Over 25 years of field proven performance. Improved bracing is 1 x 79 18 gauge galvanized steel.
SIZE
TYPE
IACOPARTNO
WEIGHT
ALUMI BOOM 10'
10'
OPTION A-1, 3"
MAL-IOO-A11
6.4
10'
OPTION A-1, 4"
MAL-IOO-A13
6.4
10'
OPTION A-1, 4 1/2"
MAL-IOO-A14
6.4
10'
OPTION A-1, 5"
MAL-IOO-A12
6.4
10'
OPTION A-1, 5 9/16"
MAL-IOO-A15
6.4
10'
OPTION A-1, 6"
MAL-IOO-A16
6.4
10'
OPTION A-1, 6 5/8"
MAL-IOO-A17
6.4
10'
OPTION A-1, 8"
MAL-IOO-A18
6.4
10'
OPTION A-1, 8 5/8"
MAL-IOO-A19
6.4
10'
OPTION A-1, 10"
MAL-IOO-A10
6.4
ALUMI BOOMS 12'
12'
OPTION B-1, 3"
MAL-IOO-B11
6.9
12'
OPTION B-1, 4"
MAL-IOO-B13
6.9
12'
OPTION B-1, 4 1/2"
MAL-IOO-B14
6.9
12'
OPTION B-1, 5"
MAL-IOO-B12
6.9
12'
OPTION B-1, 5 9/16"
MAL-IOO-B15
6.9
12'
OPTION B-1, 6"
MAL-IOO-B16
6.9
12'
OPTION B-1, 6 5/8"
MAL-IOO-B17
6.9
12'
OPTION B-1, 8"
MAL-IOO-B18
6.9
12'
OPTION B-1, 8 5/8"
MAL-IOO-B19
6.9
12'
OPTION B-1, 10"
MAL-IOO-B10
6.9
IACO OFFSET
Our least expensive but still very effective Boom. We have a new angle and improved bracing to meet the demands of growing corn.
